LCD Display Dispenser

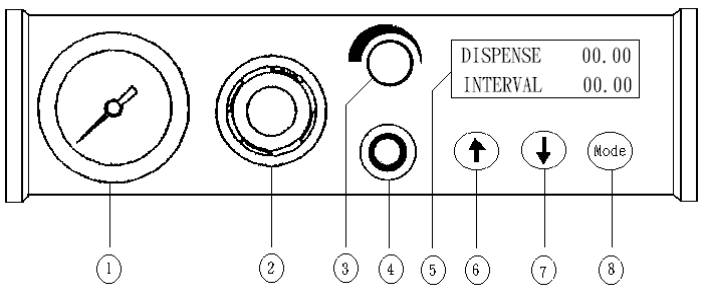

? Pressure Meter----------- (1)           ? Mode Display -------(5)

? Air Pressure Regulator-- (2)           ? ＋ --------------------(6)

? Vacuum Regulator--------(3)           ? － --------------------(7)

? Air Output-----------------(4)            ? Mode Key-----------(8)

                                      Operation

Mode Setting: press Mode Key to select the mode action


MANUAL : No timing for dispense control. Material should dispense as long as the footswitch depressed.

TEACH : Depress the footswitch and held until the amount of material has been dispensed; Release the footswitch, the display indicates the amount of time of material has been dispensed. Then, shift the mode to DISPENSE , this display time will be memorized. And start for 1 shot when the footswitch depressed.

DISPENSE : For the time of metering dispense 1 shot. The amount of dispensed material will be changed by the time setting.
depress ↑ Dispensing Time be increased
depress ↓ Dispensing Time be decreased

INTERVAL : For cycle time adjust.
     depress ↑ Intermittent Time be increased
     depress ↓ Intermittent Time be decreased

DISPENSE & INTERVAL : Auto metering dispense intermittent controlled by the cycle time. Depress footswitch will start and continuously this action. To depress footswitch again will stop dispense.

COUNTER : To set the amount of dots number for matrix

                       dispensing.
